Designing a Grid Layout Using H.T.M.L, And C.S.S. [Pt.1]

By @timix648•10/19/2023•hive-169321

*[Photo Created on Canva](https://www.canva.com/design/DAFxZ6KrzAQ/zDgJjFddvIq_HhaLqAXdjw/edit?utm_content=DAFxZ6KrzAQ&utm_campaign=designshare&utm_medium=link2&utm_source=sharebutton)*

Hello everyone! This is actually my first time making a post here🙂.

I started learning frontend development some months ago, and since then I've been trying out several designs I come across, since they say "practice makes perfect. "

Well, just yesterday, I came across this grid design on Google,

*[Photo Source](https://www.google.com/imgres?imgurl=https%3A%2F%2Fwww.freecodecamp.org%2Fnews%2Fcontent%2Fimages%2F2022%2F05%2FCSS-GRID-3.png&tbnid=gXencR1Zw6L5_M&vet=1&imgrefurl=https%3A%2F%2Fwww.freecodecamp.org%2Fnews%2Fhow-to-use-css-grid-layout%2F&docid=Mr8KOMKlTLi3mM&w=1804&h=1203&hl=en-GB&source=sh%2Fx%2Fim%2Fm5%2F4&shem=uvafc )*

and tried to attempt a grid for the first time after reading to an extent about the topic (grid).

So I would like you to take a look at the steps I took, to conquer each stage of the grid development. And would really like to hear your view, and correction if any, to make me a better front end developer.

**Stages;**

A) I employed the pre code for html, which can be seen below. I actually learnt that most programming languages, and mark-up languages have pre code, which helps define and probably tell more about the programming language in question.

Here is the pre -code for HTML;


1.   <!DOCTYPE html>

2.   <html lang="en">

3.   <head>

4.   <meta charset="UTF -8">

5.   <meta name="viewport" content="width=device -width, initial -scale=1.0">

6.   <title>Document</title>

7.   </head>

8.    <body>

9.

10.  </body>

11.  </html>

B) Next, I created a css style sheet, with the name "stylesheet.css", and linked it to my html, in the head section, so as to reflect any design I make on my style sheet, I also gave the web page a name too!

NB; This is what the link for the css will look like👇


 <link rel="stylesheet" href="./STYLESHEET.CSS">

I inserted the above code, into the <head> section:


 <head>

 <meta charset="UTF -8">

 <meta name="viewport" content="width=device -width, initial -scale=1.0">


 <link rel="stylesheet" href=". /STYLESHEET.CSS">


<title>@timix648| GRID -PRACTICE </title>

 </head>

The output/display;

From the above picture, we can see just very little detail on the Web page, with the content majorly around the head section, which is the title.

C) I created a section inside the body (the body, just like the name implies carries the body of the screen that is the part displaying a white blank page);


 <body>

 <section>


 </section>

 </body>

 </html>

D) Inside this section, which I believe functions like a <div>, I created several <div>, which was just enough for the designing of the grid;


9      <body>

10    <section>

11    <div class= "div -1">  </div>

12    <div class="div -2">  </div>

13    <div class="div -3">  </div>

14    <div class="div -4"> </div>

15    <div class="div -5"> </div>

16    <div class="div -6"> </div>

17    <div class="div -7"> </div>

18    <div class="div -8"> </div>

19    </section>

20  </body>

21  </html>

My full html code after the process?👇


1     <!DOCTYPE html>

2     <html lang="en">

3     <head>

4     <meta charset= " UTF -8">

5     <meta name="viewport" content="width=device -width, initial -scale=1.0">

6     <link rel=" stylesheet" href=". /STYLESHEET.CSS">

7



E) After adding divs to the section, I went over to the css, to begin styling the divs…in my css, I once again started with a pre code;



   1    *{

   2        padding: 0;

   3        margin: 8;

   4        box -sizing: border -box;

   5        }




F) Next, I called the section, which housed all the divs, and gave it some properties, such as the size, the color, And even the number of rows and columns;



    1   *{

    2        padding: 0;

    3        margin: 8;

    4      box -sizing: border -box;

    5     }

    6  section{

    7          width: 600px;

    8          height: 300px;

    9          background -color:hsl(233, 47%, 7%);

    10        display: grid;

    11        grid -template -columns: repeat(4, 1fr);
    12        grid - template -rows: repeat(3, 1fr);

    13        grid - gap: 8px;

             }




Implementing this above code, gave me just a plane rectangular box,




which is clearly far from home lol....So I continued.


G) I went over, to giving each of the divs a color to match the design I saw, and so I started with the first div "div -1";


        .div-1{

        background -color: rgb(52, 126,  2);

        grid -column: 1/2;

        grid-row: 1/4;

           }




In the above code, the aim is just to position the first div and give it a green color. Which can be seen below


I was able to properly position the div, with the help of the browsers, inbuilt developer's tool. I first clicked on inspect, which brought up the developer section, thereafter, I selected the layout option,


which then took me to this part where I clicked on "section",

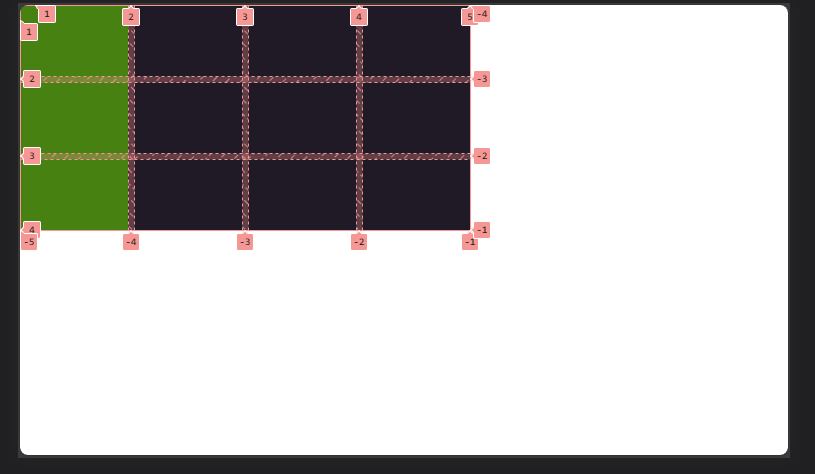

 which now easily highlights the grid box with the numbers I can use to navigate easily;


H) The rest were more like repetition with little adjustments...so basically, I positioned every other div, and gave them colors that could differentiate them from each other;


26.   .div -3{
27.         background -color: rgb(211, 191, 13);
28.         grid - column: 2/3;
29.         grid -row: 2/3;
30.   }
31.   .div -4{
32.         background -color:rgb(233, 29, 29);
33.         grid - column: 2/3;
34.         grid -row: 3/4;
35.  }
36.          .div -5{
37.         background -color: rgb(233, 29, 29);
38.         grid column: 3/4;
39.         grid -row: 2/3;
40.  }
41.   .div -6{
42.         background -color: rgb(211, 191, 13);
43.         grid - column: 3/4;
44.         grid -row: 3/4;
45.   }
46.    .div -7{
47.         background -color: rgb(233, 29, 29);
48.         grid - column: 4/5;
49.         grid -row: 1/2;
50.   }
51.    .div -8{
52.          background -color: rgb(52, 126, 2);
53.          grid - column: 4/5;
54.          grid -row: 2/4;
55.   }




After doing this, it gave me this as output;


I) I proceeded to giving the webpage body a background -color, similar to what I saw in the example grid, with the code;


body{
    background -color: hsl(233, 47%, 7%);
}




And below was the output


Looking at this, there's only one thing left, which is to place my design at the center and to do this, I made use of the code below;


 body{
          display: flex;
          background -color: hsl(233, 47%, 7%);
          justify -content: center;
          align - items: center;
          height: 100vh;
             }




Which in turn gave a satisfying output;






All images used here are mine,  except stated otherwise.


Thanks for reading.
